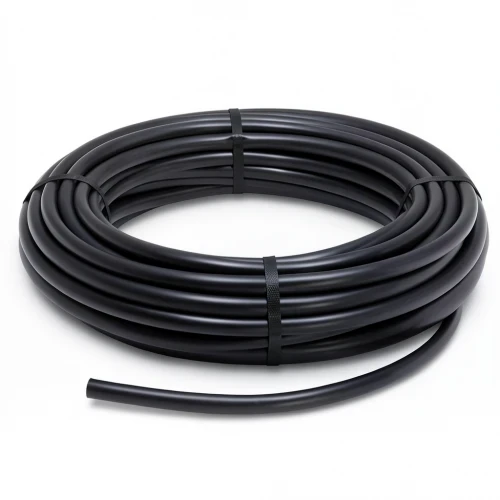

HDPE Polyethylene Coil Pipe Nominal Pressure 9.8 Bar [PE 63] Outside Diameter 50 mm SDR 9 Color Black | Almona Company

Al-Mona Company presents its premium HDPE coil pipes, engineered for efficient and durable liquid transport. Manufactured from high-density polyethylene (PE 63) and conforming to DIN 8074/8075, these pipes deliver outstanding resistance to pressure and environmental stress, making them a top choice for irrigation networks and water supply systems across Qatar.

With a nominal pressure of 9.8 bar and a standard dimension ratio of SDR 9, these pipes handle high-pressure conditions with ease. The black color provides UV protection, while the material's inherent flexibility allows for easy installation in coils, reducing the need for fittings and joints. Designed for a maintenance-free lifespan of up to 50 years, they offer a cost-effective and reliable solution for both temporary and permanent installations.

Key Features

• Nominal pressure: 9.8 bar (SDR 9)
• Outside diameter: 50 mm; wall thickness: 5.6 mm
• Weight: 0.788 kg/m
• Material grade: PE 63 with MRS of 6.3 MPa
• Design stress: 3.94 MPa; safety factor C=1.6
• Available in coil lengths: 100 m, 200 m, 300 m up to 1500 m (for 16–32 mm sizes); 100 m coils for 40–160 mm sizes
• Manufactured to DIN 8074/8075 standards

Ideal for agricultural projects, landscaping, and municipal water networks in Qatar's challenging climate, these HDPE pipes resist corrosion, abrasion, and chemical attack. Their smooth interior minimizes pressure loss, ensuring efficient water flow from Doha to Al Wakrah and beyond.
