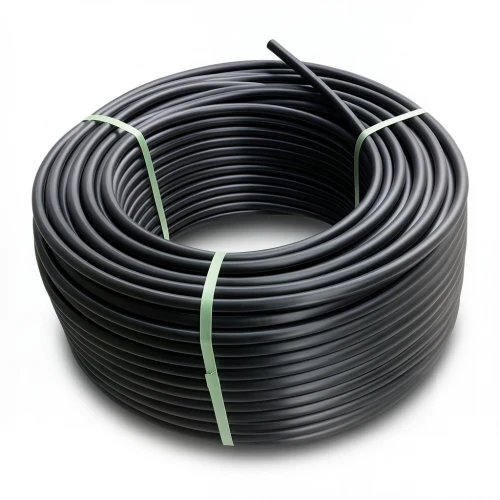

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] OD 75 mm SDR 9 Color Black | Almona Factory

Al-Mona Factory presents premium HDPE (high-density polyethylene) coil pipes, engineered to meet the rigorous demands of water transportation networks across Qatar. Manufactured in accordance with DIN 8074/8075 standards, these pipes deliver exceptional durability and performance, making them a trusted choice for infrastructure projects in Doha, Al Rayyan, and Al Wakrah.

These HDPE pipes are designed to withstand high water pressure, ensuring reliable operation in networks subjected to demanding conditions. With a minimum required strength of 10 MPa and a design safety factor of 1.6, they offer long-term structural integrity. The pipes boast a maintenance-free lifespan of 50 years, reducing operational costs and downtime. Their superior resistance to UV radiation and harsh weather makes them ideal for Qatar's intense sun and heat, while their flexibility provides excellent earthquake resistance, crucial for seismic resilience.

Additionally, these pipes resist chemical corrosion, handling substances with a pH range of 2 to 12, making them versatile for various industrial and municipal applications. Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm, they offer flexibility for projects of any scale.

Key Specifications

• Outside diameter: 75 mm
• Standard dimension ratio (SDR): 9
• Pipe series (S): 4
• Material grade: PE 100
• Pressure rating: 15.6 bar
• Wall thickness: 8.4 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 1.78 kg/m
• Design safety factor: C=1.6, σs = 6.25 MPa
• Color: Black
• Length: Coils (100, 200, 300 up to 1500 meters) for sizes 16-32 mm; 100-meter coils for sizes 40-160 mm
