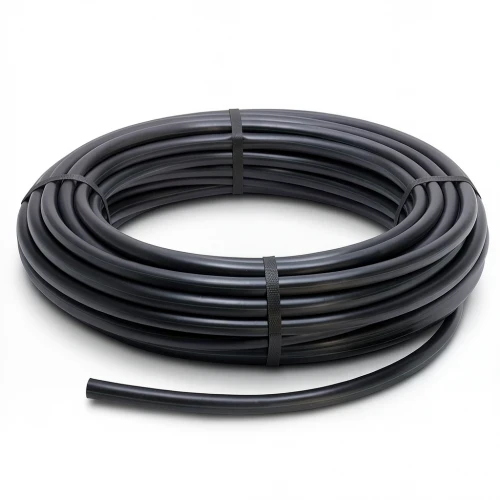

HDPE Coil Pipe Pressure 3.9 Bar [PE 63] Outer Diameter 110 mm SDR 21 Color Black | Almona Factory

Al Mona Factory presents high-density polyethylene (HDPE) coil pipes engineered for reliable performance in demanding environments. With an outer diameter of 110 mm and a pressure rating of 3.9 bar (SDR 21), these pipes are manufactured to DIN 8074/8075 standards, ensuring consistent quality and durability.

Designed for efficient liquid transport, these pipes are an excellent choice for irrigation systems, water supply networks, and industrial applications across Qatar. Their high impact resistance and flexibility make them suitable for both above-ground and underground installations, particularly in the challenging desert climate where temperature fluctuations and soil conditions require robust piping solutions.

• Outer diameter: 110 mm
• Wall thickness: 5.3 mm
• Weight: 1.77 kg/m
• Standard dimension ratio: SDR 21
• Pressure rating: 3.9 bar
• Pipe series (S): 10
• Material grade: PE 63 (high-density polyethylene)
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Manufactured according to: DIN 8074/8075

These pipes offer a maintenance-free service life of up to 50 years, providing long-term cost efficiency. They are resistant to corrosion, chemicals, and abrasion, ensuring safe and hygienic water transportation. Available in coil lengths of 100, 200, 300, up to 1500 meters for sizes 16-32 mm, and 100-meter coils for sizes 40-160 mm, they offer flexibility for various project scales.

Whether for agricultural irrigation in Al Rayyan, municipal water supply in Doha, or industrial use in Al Wakrah, Al Mona HDPE coil pipes deliver dependable performance that meets the highest standards.
