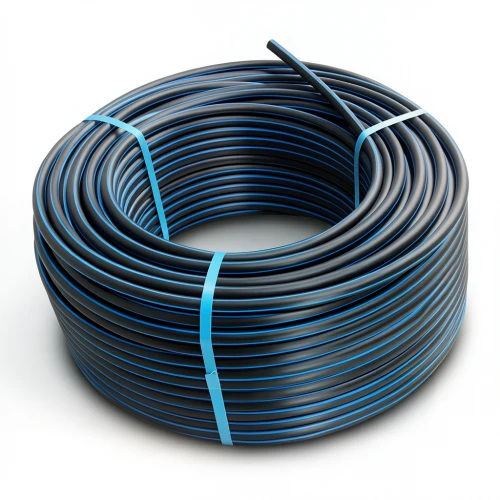

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] OD 75 mm SDR 33 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable water transportation networks, meeting DIN 8074/8075 standards. Made from high-density polyethylene (PE 100), it offers exceptional durability and performance, making it a top choice for both residential and commercial projects across Qatar.

Designed to withstand high water pressure, this pipe ensures a maintenance-free service life of up to 50 years, even under the demanding conditions of Qatar's climate. Its superior resistance to UV radiation and chemical corrosion (pH range 2–12) makes it suitable for long-term outdoor installation, while its flexibility provides excellent earthquake resistance, a critical feature for infrastructure resilience.

Key Features

• Outside diameter: 75 mm
• Standard dimension ratio: SDR 33
• Pipe series (S): 16
• Material grade: PE 100
• Pressure rating: 4 bar
• Wall thickness: 2.3 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.557 kg/m
• Design safety factor: C=1.6, σs = 6.25 MPa
• Color: Black with blue stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Whether you are developing new infrastructure in Doha, expanding utility networks in Al Rayyan, or upgrading water systems in Al Wakrah, this HDPE pipe delivers the strength and longevity required for modern construction. Its flexible coil format simplifies handling and installation, reducing labor time and costs on site.
