HDPE Coil Pipe PN 10 Bar [PE 80] OD 25 mm SDR 13.6 Color Black | Almona Factory

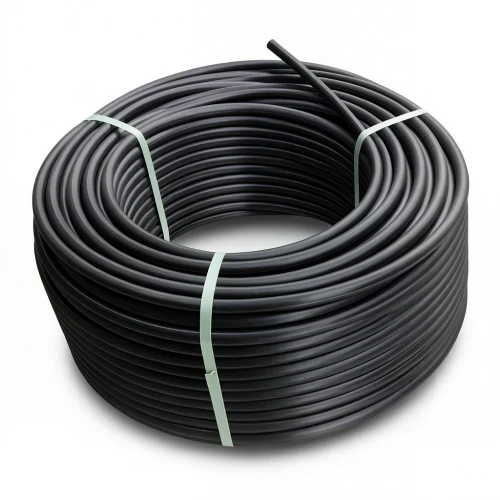

Almona Factory presents high-density polyethylene (HDPE) coil pipes, engineered for reliable water transportation in Qatar's demanding environment. These pipes combine flexibility with exceptional durability, making them a preferred choice for both temporary and permanent installations.

Manufactured to ISO 4427-2 standards, these coils offer superior resistance to rust, corrosion, and chemical attack, ensuring a long service life even in harsh conditions. The high flexibility reduces the need for extensive soil work during installation, saving time and labor on projects across Doha, Al Rayyan, and Al Wakrah.

Key Features

• Outer diameter: 25 mm
• Standard dimension ratio: SDR 13.6
• Material grade: PE 80
• Pressure rating: 10 bar (PN 10)
• Wall thickness: 2 mm
• Minimum required strength: 8 MPa
• Design stress: 6.4 MPa
• Design safety factor: C = 1.25
• Color: black
• Available in coil lengths from 100 m to 1500 m (sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm

Ideal for potable water supply, irrigation, and industrial applications, these HDPE coils meet the rigorous standards expected by Qatari contractors and engineers. Their lightweight nature simplifies handling and transportation across the country.
