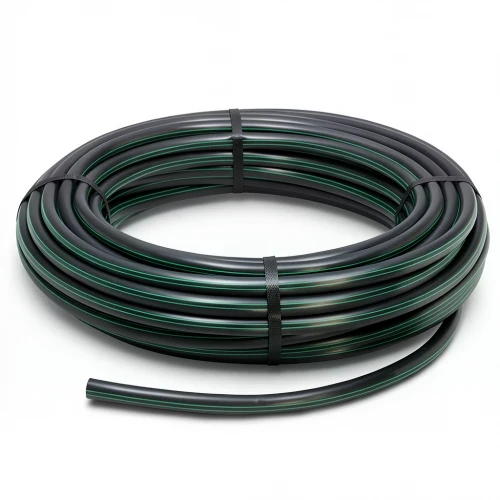

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] Outside Diameter 90 mm SDR 17.6 Color Black with Green Stripes | Almona Factory

This HDPE (High-Density Polyethylene) coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, offers a reliable solution for water transportation networks in Qatar. With a nominal pressure of 6 bar and an outside diameter of 90 mm, this pipe is engineered to handle demanding conditions while ensuring long-term performance.

Thanks to its high flexibility and resistance to UV radiation, this pipe is ideal for outdoor installations across Doha, Al Rayyan, and Al Wakrah, where harsh sunlight and temperature variations are common. The pipe's ability to withstand chemical corrosion (pH range 2–12) makes it suitable for various industrial and agricultural applications.

Key Features

• Material grade: PE 63 with a minimum required strength (MRS) of 6.3 MPa
• Standard dimension ratio (SDR): 17.6, pipe series (S): 8.3
• Wall thickness: 5.1 mm, weight: 1.39 kg/m
• Design safety factor: C = 1.25 (σs = 5.04 MPa)
• Color: Black with green stripes for easy identification
• Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16–32 mm) and 100-meter coils for sizes 40–160 mm
• Resistant to earthquakes and ground movement due to high flexibility
• 50-year maintenance-free service life

Whether for municipal water supply, irrigation projects, or industrial pipelines, this HDPE coil pipe delivers exceptional durability and efficiency, meeting the rigorous standards of Qatar's construction and infrastructure sectors.
