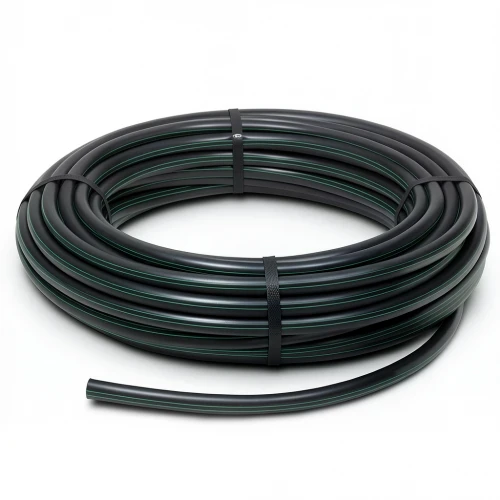

HDPE Coil Pipe Nominal Pressure 3.9 Bar [PE 63] OD 40 mm SDR 21 Color Black | Almona Factory

This HDPE coil pipe, manufactured by Al-Mona Factory, is engineered for efficient and durable liquid conveyance in Qatar's agricultural and landscaping sectors. With a 40 mm outside diameter and a nominal pressure of 3.9 bar (SDR 21), it meets the rigorous demands of irrigation systems across Doha, Al Rayyan, and Al Wakrah.

Made from high-density polyethylene (PE 63) and produced according to DIN 8074/8075 standards, this pipe offers exceptional resistance to harsh weather, UV radiation, and soil conditions common in the Gulf region. Its smooth interior ensures low friction loss, while its flexibility simplifies installation in coils, reducing joints and potential leak points.

Key Features

• Outside diameter: 40 mm
• Wall thickness: 1.9 mm
• Weight: 0.239 kg/m
• Standard dimensional ratio (SDR): 21
• Nominal pressure: 3.9 bar
• Pipe series (S): 10
• Material grade: PE 63 (MRS 6.3 MPa)
• Design stress: 3.94 MPa (safety factor C=1.6)
• Color: Black
• Available in coils: 100 m (for 40 mm and above), and up to 1500 m for smaller diameters (16-32 mm)
• Manufactured to DIN 8074/8075

With a maintenance-free service life of 50 years, this pipe is a reliable choice for permanent irrigation infrastructure, municipal water supply lines, and industrial fluid transfer projects throughout Qatar.
