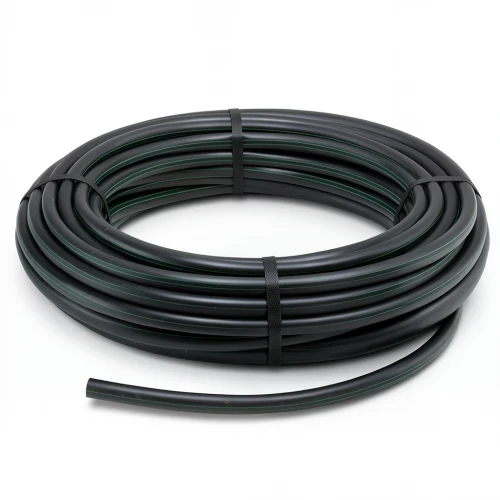

HDPE Plastic Coil Pipe Working Pressure 10 Bar [PE 63] Outer Diameter 140 mm SDR 11 Color Black | Almona Company

This HDPE coil pipe from Almona Company is engineered for reliable liquid conveyance in demanding conditions. Made from high-density polyethylene (PE 63), it delivers exceptional strength and longevity, making it a trusted choice for irrigation networks across Qatar.

Key Features

• Pressure rating: 10 bar
• Outer diameter: 140 mm
• Wall thickness: 12.7 mm
• Weight: 5.08 kg/m
• Standard dimensional ratio: SDR 11
• Pipe series (S): 5
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Manufactured to DIN 8074/8075

Applications in Qatar

Ideal for agricultural and landscaping irrigation systems in Doha, Al Rayyan, and Al Wakrah, this pipe withstands high water pressures and resists corrosion, ensuring a maintenance-free service life of up to 50 years. Its black color provides UV protection, suitable for outdoor installations under the Qatari sun.

Available Lengths

Coils from 100 to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm.
