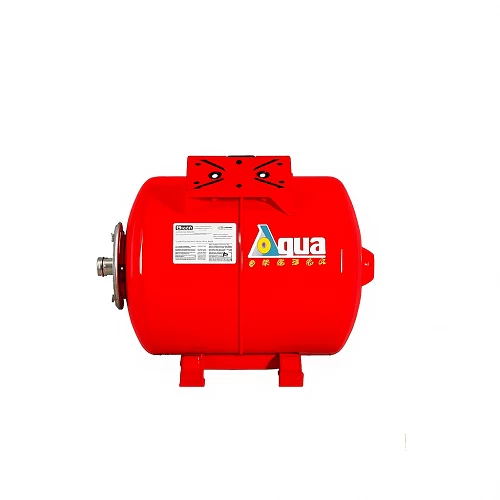

Horizontal Water Tank 100L Capacity, Pressure 10 bar, Diameter 545 mm, Height 680 mm, Red Color

Water pressure tank made of stainless steel or galvanized steel to ensure durability and corrosion resistance, it features an internal replaceable membrane made of hygienically approved EPDM or Butyl materials, compliant with the highest European and American safety standards, ensuring the purity and safety of potable water, the outer coating consists of an epoxy primer and a polyurethane acrylic topcoat, providing excellent resistance to moisture, rust, and harsh weather conditions, it supports operating pressures up to 25 bar, making it suitable for a wide range of systems such as domestic and industrial water pumps, expansion systems, irrigation, solar energy systems, and water purification systems. Available in various sizes and pressure ratings to meet diverse customer needs across multiple applications.

• Design Type: Horizontal
• Capacity: 100 Liter
• Working Pressure: 10 Bar
• Diameter: 545 mm
• Height: 680 mm
• Color: Red
• Pre-charge Pressure: 3 Bar
• Connection Type: 1" BSP/NPT
• Code: AQU-100H-PW
