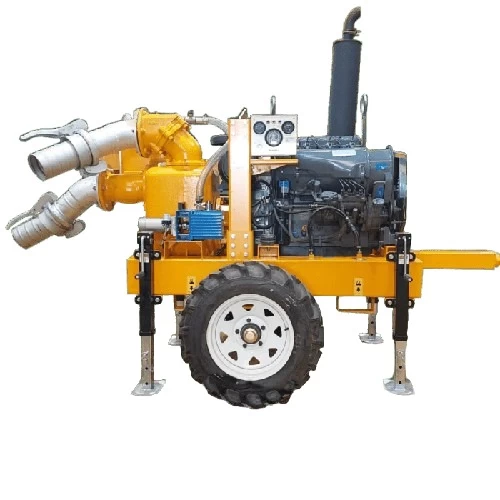

Chinese Diesel Water Pump 3 Inch, Flow Rate 200 m³, Yellow Color
(1605 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Chinese diesel water pump 3 inch, flow rate 200 m³, yellow color, made of high quality materials, characterized by durability, strength, ease of maintenance, disassembly and installation
Product description
Water pump, made of high quality materials, characterized by durability, strength, ease of maintenance, disassembly and installation, It is used in drilling and exploration operations to remove water collected in various locations such as rivers, coasts, and valleys, which facilitates the drilling process. used to lift clean water and low energy consumption, and the pump has a sealed motor to protect against rain and dust, making it suitable for use in all applications, available in different sizes and shapes to meet all needs.
- Model: FT-Q200-H18
- Engine: Deutz - China
- Flow Rate: 200 m³/h
- Dimensions: 2200×1200×1250 mm
- Weight: 900 kg
- Color: Yellow
- Suction Range: 6 m
- Lift: 25 m
- Maximum Speed: 15 m/h
- Power: 24 kW
- Rated Speed: 1500 r/min
- Forward mode: Traction type
- Trailer form: Two-wheeled mobile trailer
- Support: Mechanical type
- Control system: Mechanical control
- Vacuum assisted system: Permanent magnet DC control
- Maximum particle passage diameter: 76 mm
- Water inlet: 3 inch
- Water outlet: 3 inch
- Diameter of discharge outlet: 50 mm
- Chassis: High quality carbon structural steel frame
- Fuel system: Fuel medium: diesel; Integrated bottom oil tank; Continuous work for ≥ 8 hours
