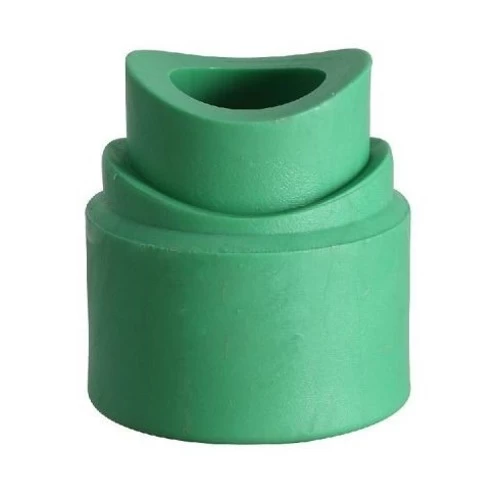

PPR Saddle Size 63 × 25 mm Inside Diameter 25 mm Green Color | AL Koblan
(959 Product Views)
PPR Saddle, produced by Al koplan factory, green color, size 63 × 25 mm, inside diameter 25 mm, for use in drinking water and sanitation systems, withstand high temperatures without any impact on performance or quality.
Product description
PPR Saddle, produced by Al koplan factory, for use in drinking water and sanitation systems, lightweight, easy to install and corrosion resistant to many chemicals such as salts, acids and bases, environmentally friendly, withstand high temperatures without any impact on performance or quality, available in multiple sizes to suit all different needs.
- Size : 63 × 25 mm
- First Internal Diameter (d): 25 mm
- Second Internal Diameter (d1) : 24 mm
- Second Diameter (D1) : 34 mm
- Depth of Interference (Z) : 16 mm
- Hight (h) : 10.50 mm
- color : green
- According to standard (DIN) : 16962, SASO-ISO 15874
