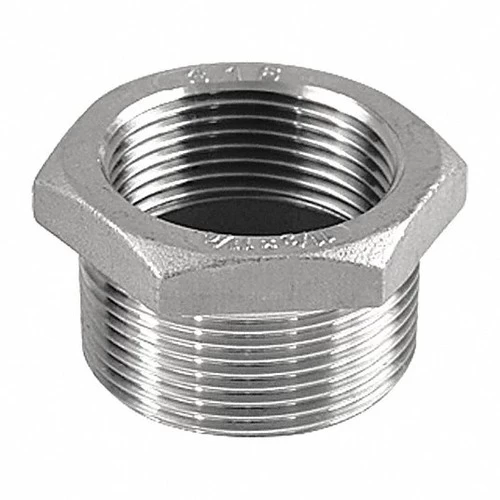

Stainless Steel Hex Bushing, Size 3/4× 1/4 inch, Grainger Approved Brand, Silver Color
(602 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stainless steel hex bushing, size 3/4× 1/4 inch, Grainger Approved brand, silver color, made of high quality materials that are strong, durable, corrosion resistant and easy to install, making it ideal for use in harsh environments.
Product description
Stainless steel hex bushing, made of high quality materials that are strong, durable, corrosion resistant and easy to install, making it ideal for use in harsh environments. It can withstand high pressures without leaking or damage and provides a durable and effective solution for connecting pipes, so it is suitable for use in various applications. Available in a variety of sizes and at the best prices.
- Pipe fitting material: 316 stainless steel
- Subject grade: 316
- Class: Class 150
- Pipe schedule: 40
- Side A: 3/4 inch
- Side A Connection Type: Male
- Side A connection rating: NPT
- Installation Outside Diameter of Side A: 3/4 inch
- Number of pins on side A: 18
- B side size: 1/4 inch
- B-side connection type: female
- B-side connection rating: NPT
- Installation Outer Diameter of Side B: 1/4 inch
- Number of pins on side B: 18
- Maximum operating pressure: 300 psi
- Maximum steam pressure: 150 psi
- Total length: 25.7 mm
- Head size: 30.5 mm
- Color: silver
- Sealant included: No
- Tightening included: No
- Measurement standards: ASME B1.20.1, ASTM A351, MSS SP-114
- Weight: 0.068
- Code: BD-1LUN6
