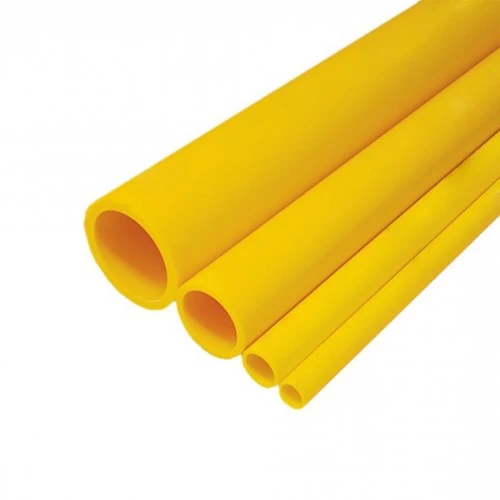

Neproplast HDPE Pipes PE 100 Pressure 12.5 Bar Outside Diameter 560 mm Thickness 41.2 mm Color Yellow
(1069 Product Views)
HDPE Pipes Neproplast brand, PE100, Pressure 12.5 bar, Outside diameter 560 mm, Thickness 41.2 mm, Color Yellow, used in gas applications. It is made of high-density polyethylene. It bears high pressure, It is characterized by high pressure tolerance, light weight and strength, resistance to heat and ultraviolet rays, and one of its properties is resistance to bacteria and insects, it does not need painting, it is easy to form according to the customer’s request, the pipes can be connected safely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , used in gas applications. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 560 mm
- Pressure: 12.5 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 41.2 mm
- Material Weight: 66.90 kg / meter
- Color: Yellow, other colors are available on request
- Material: PE100
- Standard dimentions ratio (SDR): 13.6
- Sigma : 8
- Minimum required strength (MRS) : 10
- Series (S) : 6.3
