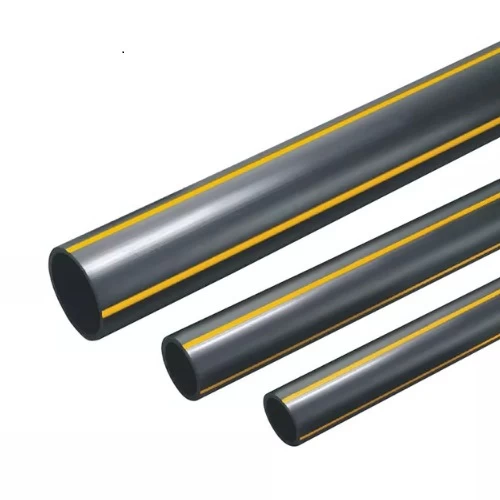

HDPE Polyethylene Pipe Working Pressure 8 Bar [PE 80] Outer Diameter 250 mm Thickness 22.7 mm Color Black with Yellow Stripes | Almona Company
(845 Product Views)
HDPE Polyethylene Pipe, color black with yellow stripes, for gas supply networks, produced by Al-Mona factory.It is characterized by its flexibility and resistance to breakage, outside diameter 250 mm pressure 8 bar.
Product description
HDPE pipe for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 250 mm
- Thickness : 22.7 mm
- Material Weight : 16.31 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 8 bar
- Material grade : PE 80
- Color : Black with yellow stripes
- Minimum Required Strength (MRS) : 8 MPa
- Design stress (ฯs) : 4 MPa
- Design safety factor : C=2
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : ISO4437
