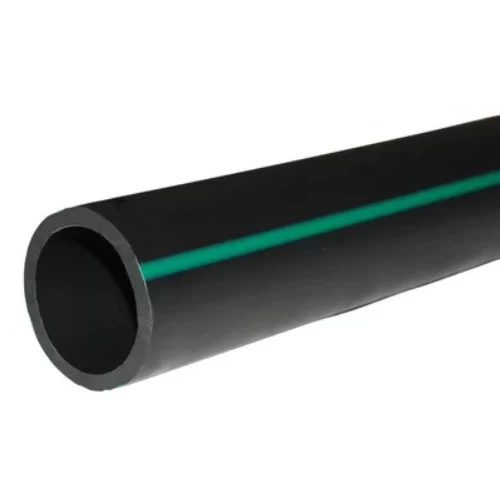

HDPE Polyethylene Pipe PN 6.2 Bar [PE 63] Outside Diameter 250 mm SDR 13.6 Color Black with Green Stripes | Almona Factory
(752 Product Views)
HDPE Polyethylene Pipe, It remains stable and maintains its quality over a long period, thanks to its resistance to corrosion and chemical influence, with a long shelf life, produced by Al-Mona factory, material grade PE63, pressure 6.2 bar, outside diameter 250 mm.
Product description
HDPE Plastic Pipes for water transportation networks, produced by Al Mona factory according to DIN 8074/8075. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors, as HDPE pipes can withstand exposure to UV for long periods. They are also resistant earthquakes due to high pipe and welded joint flexibility. In addition to their resistance to chemical corrosion, they can withstand various chemicals with a pH range of 2 to 12. Available in a variety of sizes with highest quality and the best prices.
- Outside diameter: 250 mm
- Standard dimentions ratio: SDR 13.6
- Pipe Series (S): 6.3
- Material grade: PE 63
- Pressure: 6.2 bar
- Thickness: 18.4 mm
- Minimum Required Strength (MRS): 6.3 MPa
- Material Weight: 13.4 kg/m
- Design safety factor: C=1,6
- Design safety factor: σs = 3.94 MPa
- Color: Black with green stripes
- Length : 12 meters (available in different lengths upon request)
