![HDPE Polyethylene Pipe PN 4.8 Bar [PE 80] OD 355 mm Thickness 20.2 mm Color Black with Yellow Stripes | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/163750/conversions/HDPE-Coil-Pipe-%284%29-size_500_500.webp "HDPE Polyethylene Pipe PN 4.8 Bar [PE 80] OD 355 mm Thickness 20.2 mm Color Black with Yellow Stripes | Almona Factory")

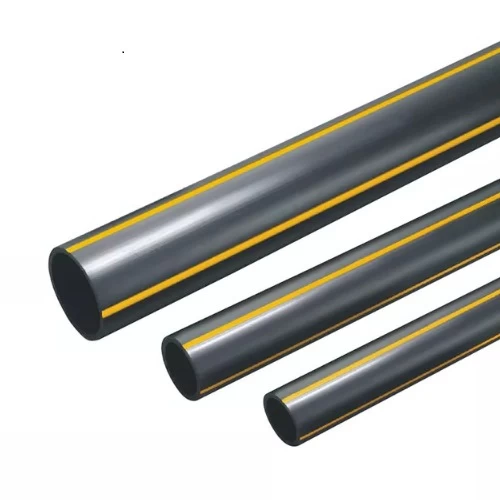

HDPE Polyethylene Pipe PN 4.8 Bar [PE 80] OD 355 mm Thickness 20.2 mm Color Black with Yellow Stripes | Almona Factory
(429 Product Views)
HDPE pipes, Easy to maintain, transport and install, as its parts are assembled easily and without the need for advanced equipment, available in a variety of sizes., material grade PE80, pressure 4.8 bar (SDR 17.6), outer diameter 355 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 355 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 20.2 mm
- Material Weight : 21.29 kg/m
- Minimum Required Strength (MRS): 8 MPa
- Design stress (σs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (available in different lengths upon request)
