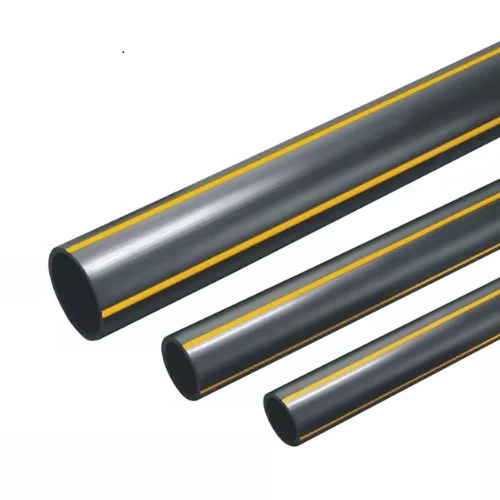

HDPE Polyethylene Pipe PN 4.8 Bar [PE 80] OD 225 mm Thickness 12.8 mm Color Black with Yellow Stripes | Almona Factory
(550 Product Views)
HDPE pipes, Designed for gas and fuel supply transportation networks. It can withstand shocks caused by vehicles or accidents, in addition to being resistant to fire, material grade PE80, pressure 4.8 bar (SDR 17.6), outer diameter 225 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 225 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 12.8 mm
- Material Weight : 8.60 kg/m
- Minimum Required Strength (MRS): 8 MPa
- Design stress (σs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (available in different lengths upon request)
