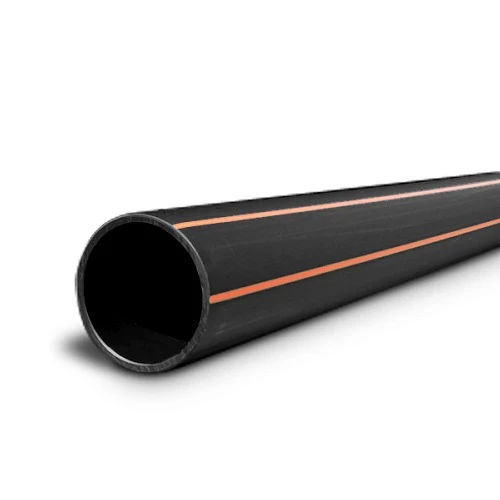

HDPE Polyethylene Pipe Nominal Pressure 6 Bar [PE 100] OD 315 mm Thickness 17.9 mm Color Black with Orange Stripes | Almona Factory
(1017 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
HDPE pipes, have several uses as they are widely used in various industries such as gas supply transportation networks, lightweight and easy to transport, material grade PE100, pressure 6 bar (SDR 17.6), outer diameter 315 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 315 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 100
- Pressure: 6 bar
- Thickness: 17.9 mm
- Material Weight : 16.80 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: black with orange stripes
- Length: 12 meters (available in different lengths upon request)
