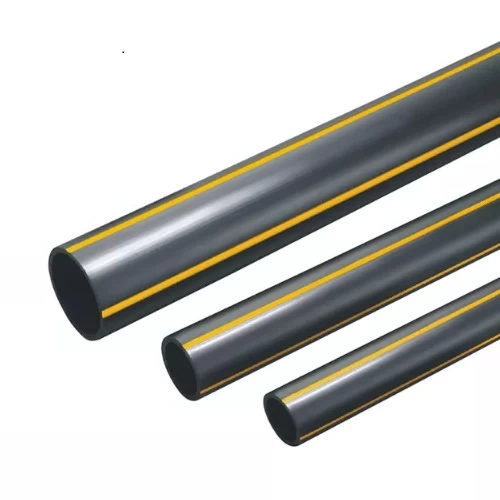

HDPE Polyethylene Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 250 mm Thickness 14.2 mm Color Black with Yellow Stripes | Almona Factory
(1006 Product Views)
HDPE pipes, Withstands external influence from earthquakes and high pressure in the ground, available in a variety of sizes with the highest quality and best prices, material grade PE80, pressure 4.8 bar (SDR 17.6), outer diameter 250 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 250 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 14.2 mm
- Material Weight : 10.62 kg/m
- Minimum Required Strength (MRS): 8 MPa
- Design stress (σs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (available in different lengths upon request)
