![HDPE Plastic Pipe [SDR 11] [PE 80] OD 450 mm Thickness 40.9 mm Black Color | Alwasail](https://youmats-media.s3.me-central-1.amazonaws.com/Y776140Z7/conversions/hdpe-pipes-2-size_500_500.webp "HDPE Plastic Pipe [SDR 11] [PE 80] OD 450 mm Thickness 40.9 mm Black Color | Alwasail")

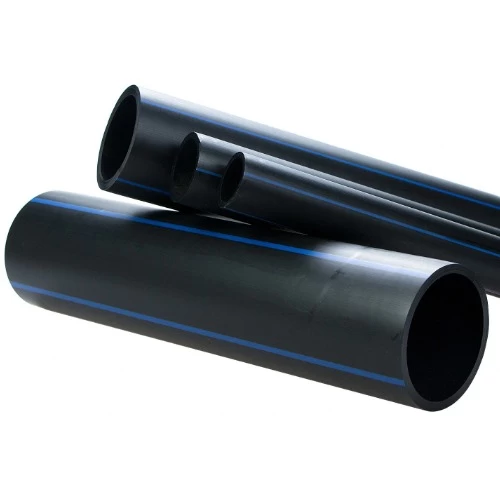

HDPE Plastic Pipe [SDR 11] [PE 80] OD 450 mm Thickness 40.9 mm Black Color | Alwasail
(621 Product Views)
HDPE Plastic Pipes, It is easy to transport and install, and has a high ability to withstand harsh climates, produced by Al-Wasail Industrial Company, material grade PE80, pressure 10 bar, outside diameter 450 mm.
Product description
HDPE Plastic Pipes, Al-Wasail Industrial Company, according to the DIN 8074/8075 standard, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter: 450 mm
- Standard dimentions ratio: SDR 11
- Pipe Series (S): 5
- Material grade: PE 80
- Pressure: 10 bar
- Inner diameter: 368.2 mm
- Thickness: 40.9 mm
- Minimum Required Strength (MRS): 8 MPa
- Weight: 52.300 kg/m
- Design safety factor: C=1,6
- Design safety factor: σs = 5 MPa
- Color: Black
- Length: 12 meter from size (140 mm to 630 mm)
