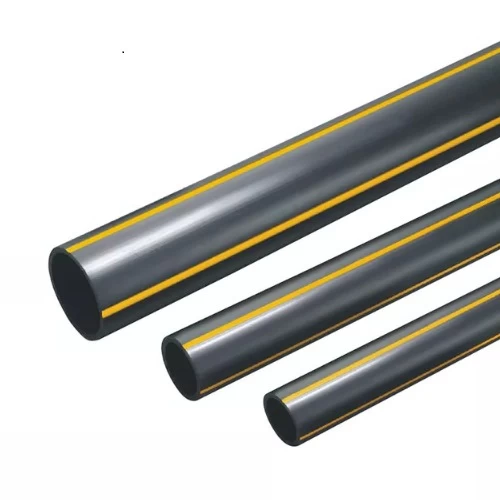

HDPE Plastic Pipe PN 4.8 Bar [PE 80] OD 500 mm Thickness 28.4 mm Color Black with Yellow Stripes | Almona Factory
(806 Product Views)
HDPE pipes, It is characterized by its resistance to harsh weather conditions, and its superior properties to withstand high temperature and high pressure, material grade PE80, pressure 4.8 bar (SDR 17.6), outer diameter 500 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 500 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 28.4 mm
- Material Weight : 42.12 kg/m
- Minimum Required Strength (MRS): 8 MPa
- Design stress (σs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (available in different lengths upon request)
