![HDPE Plastic Pipe PN 3.2 Bar [PE 80] OD 250 mm Black Color | Alwasail](https://youmats-media.s3.me-central-1.amazonaws.com/188210/conversions/hdpe-pipes-2-size_500_500.webp "HDPE Plastic Pipe PN 3.2 Bar [PE 80] OD 250 mm Black Color | Alwasail")

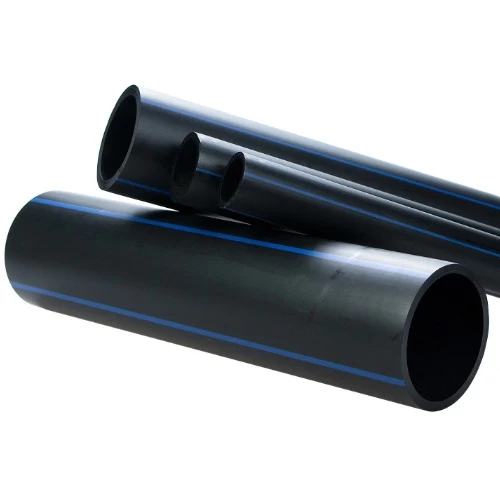

HDPE Plastic Pipe PN 3.2 Bar [PE 80] OD 250 mm Black Color | Alwasail
(326 Product Views)
HDPE Plastic Pipes, It is fire resistant and can withstand shocks caused by vehicles or accidents, produced by Al-Wasail Industrial Company, material grade PE80, pressure 3.2 bar, outside diameter 250 mm.
Product description
HDPE Plastic Pipes, Al-Wasail Industrial Company, according to the DIN 8074/8075 standard, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter: 250 mm
- Standard dimentions ratio: SDR 41
- Pipe Series (S): 20
- Material grade: PE 80
- Pressure: 3.2 bar
- Inner diameter: 237.6 mm
- Thickness: 6.2 mm
- Minimum Required Strength (MRS): 8 MPa
- Weight: 4.830 kg/m
- Design safety factor: C=1,25
- Design safety factor: σs = 6.3 MPa
- Color: Black
- Length: 12 meter coils from size (140 mm to 630 mm)
