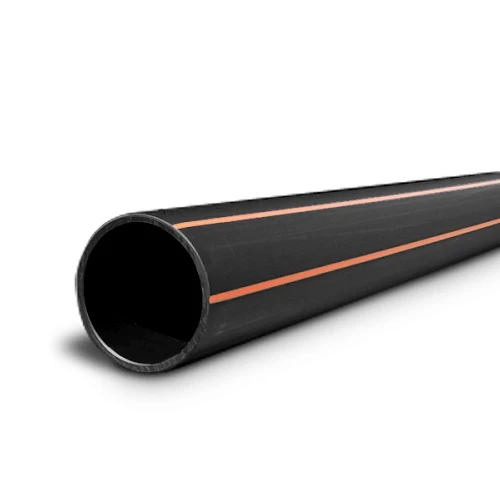

HDPE Plastic Pipe Nominal Pressure 10 Bar [PE 100] OD 630 mm Thickness 57.3 mm Color Black with Orange Stripes | Almona Company
(688 Product Views)
HDPE Plastic Pipe, color black with orange stripes, for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, Widely used in different industries, available in a variety of sizes, material grade PE100, pressure 10 bar (SDR 11), outside diameter 630 mm.
Product description
HDPE pipe for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 630 mm
- Thickness : 57.3 mm
- Material Weight: 102.90 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 10 bar
- Material grade : PE 100
- Color : Black with orange stripes
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : ISO4437
