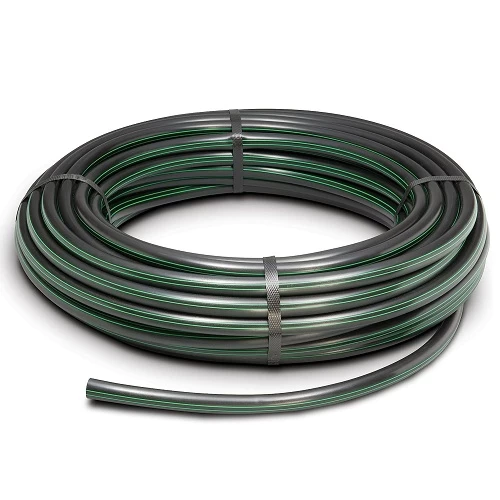

HDPE Plastic Coil Pipe Pressure 16 Bar [PE 100] OD 20 mm Thickness 2.3 mm Black Color | Al Manar Factory
(619 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
HDPE plastic pipes, pressure 16 bar, [PE 100], size 20 mm, thickness 2.3 mm, black color, produced by Al-Manar Factory, characterized by anti-corrosion and anti-rust properties that ensure a service life that lasts for many years.
Product description
HDPE (High-density polyethylene) produced by Al Manar Factory , it has many advantages, as it is durable and strong and can withstand ground pressures and strong operation. Light weight, easy to transport and install compared to traditional pipes, and has anti-corrosion and anti-rust properties that ensure a long service life. It also provides high resistance to chemicals and ultraviolet rays, making it suitable for use in underground sewage systems, natural gas and oil systems, and refrigeration and air conditioning systems. Available in black in a variety of sizes with the highest quality and the best prices.
- Size (OD) : 20 mm
- Thickness : 2.3 mm
- PN : 16 bar
- Material Weight : 0.133 kg/m
- Color : Black
- Standard dimensions ratio (SDR) : 9
- Standards : ISO 2-4427, DIN 8074, EN 2-12201
- Material : PE 100
- Pipe series (S) : 4
- Standard length: 6.9, 12 meters (other lengths are available upon request)
