![HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 125 mm Thickness 7.1 mm Color Yellow | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/YE0E13IAQ/conversions/HDPE-Coil-Pipe-%282%29-size_500_500.webp "HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 125 mm Thickness 7.1 mm Color Yellow | Almona Factory")

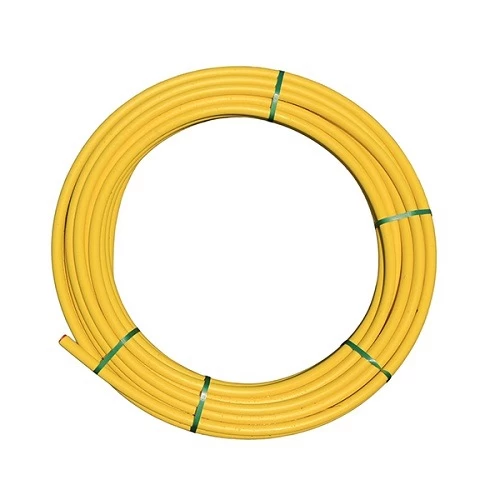

HDPE Plastic Coil Pipe Nominal Pressure 4.8 Bar [PE 80] Outside Diameter 125 mm Thickness 7.1 mm Color Yellow | Almona Factory
(555 Product Views)
HDPE pipe coils, Anti-corrosion and rust-resistant, ensuring a long service life for many years. It is used in infrastructure systems, material grade PE80, pressure 4.8 bar (SDR 17.6), outside diameter 125 mm, produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in yellow color in a variety of sizes with highest quality and best prices.
- Outside diameter: 125 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 7.1 mm
- Material Weight : 2.68 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: yellow
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
