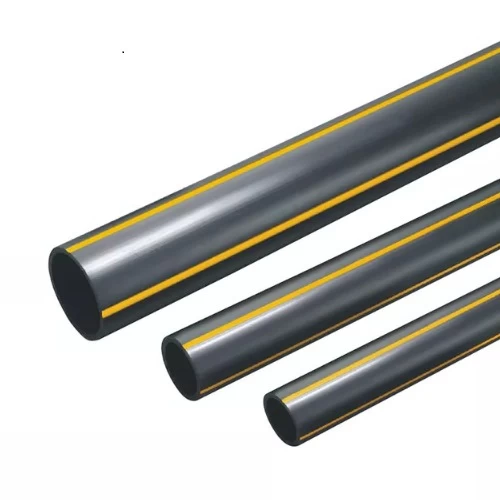

HDPE Pipe PN 4.8 Bar [PE 80] OD 200 mm Thickness 11.4 mm Color Black with Yellow Stripes | Almona Factory
(909 Product Views)
HDPE pipes, Withstands high temperatures, comes in various sizes and shapes to meet the requirements of different projects, material grade PE80, pressure 4.8 bar (SDR 17.6), outer diameter 200 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 200 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 11.4 mm
- Material Weight : 6.83 kg/m
- Minimum Required Strength (MRS): 8 MPa
- Design stress (σs): 4 MPa
- Design safety factor: C=2
- Color: black with yellow stripes
- Length: 12 meters (available in different lengths upon request)
