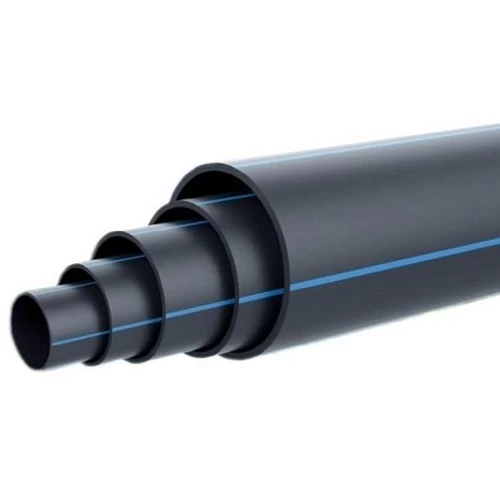

HDPE Pipe PN 10 Bar [PE 100] Outside Diameter 560 mm SDR 17 Color Black with Blue Stripes | Almona Company
(2299 Product Views)
Black HDPE pipes with blue stripes for water transportation networks, (SDR 17), made of (high-density polyethylene), outside diameter 560 mm, according to DIN 8074/8075 standard, material grade PE 100, produced by Al Mona factory. It requires less maintenance, reducing operational costs in the long term, pressure 10 bar .
Product description
HDPE pipe for water transportation networks, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 560 mm
- Thickness : 33.2 mm
- Material Weight: 55.4 kg / m
- Standard dimensional ratio : SDR 17
- Pressure : 10 bar
- Pipe Series (S) : 8
- Material grade : PE100
- Color : Black with Blue Stripes
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 8 MPa
- Design safety factor : C=1.25
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : DIN 8074/8075
