![HDPE Pipe PN 6 Bar [PE 80] OD 355 mm Thickness 20.1 mm Black Color | Alwasail](https://youmats-media.s3.me-central-1.amazonaws.com/Y6AD540OC/conversions/hdpe-pipes-2-size_500_500.webp "HDPE Pipe PN 6 Bar [PE 80] OD 355 mm Thickness 20.1 mm Black Color | Alwasail")

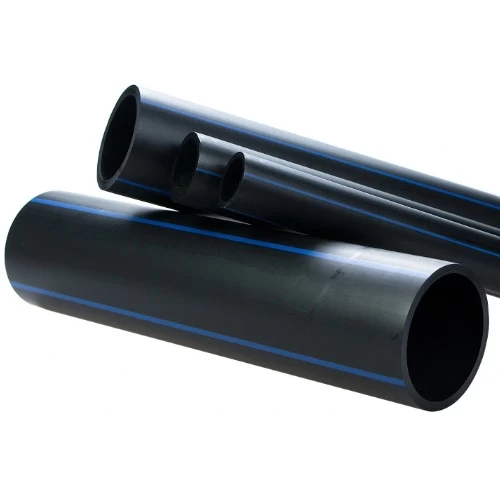

HDPE Pipe PN 6 Bar [PE 80] OD 355 mm Thickness 20.1 mm Black Color | Alwasail
(501 Product Views)
HDPE Plastic Pipes, It is characterized by ease of maintenance and speed of installation. It has a high ability to withstand harsh climates, produced by Al-Wasail Industrial Company, material grade PE80, pressure 6 bar, outside diameter 355 mm.
Product description
HDPE Plastic Pipes, Al-Wasail Industrial Company, according to the DIN 8074/8075 standard, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter: 355 mm
- Standard dimentions ratio: SDR 17.6
- Pipe Series (S): 8.3
- Material grade: PE 80
- Pressure: 6 bar
- Inner diameter: 314.8 mm
- Thickness: 20.1 mm
- Minimum Required Strength (MRS): 8 MPa
- Weight: 21.200 kg/m
- Design safety factor: C=1,6
- Design safety factor: σs = 5 MPa
- Color: Black
- Length: 12 meter from size (140 mm to 630 mm)
