![HDPE Pipe Nominal Pressure 3.2 Bar [PE 80] Size (OD) 400 mm [SDR 33] Black Color | Alwasail](https://youmats-media.s3.me-central-1.amazonaws.com/YC63D40UP/conversions/HDPE-size_500_500.webp "HDPE Pipe Nominal Pressure 3.2 Bar [PE 80] Size (OD) 400 mm [SDR 33] Black Color | Alwasail")

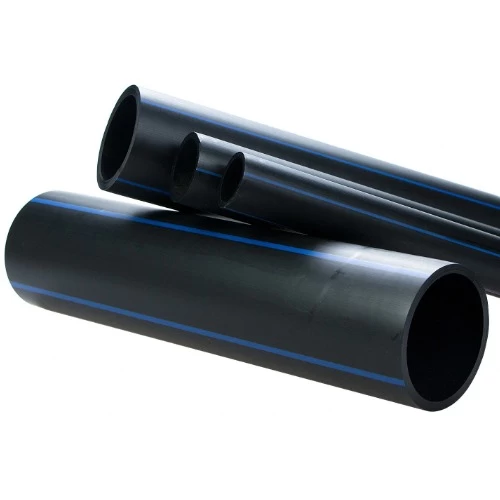

HDPE Pipe Nominal Pressure 3.2 Bar [PE 80] Size (OD) 400 mm [SDR 33] Black Color | Alwasail
(469 Product Views)
HDPE pipes, outside diameter 400 mm, material grade PE80, pressure 3.2 bar, produced by Al-Wasail Company, Comes in different sizes to suit all needs, black color.
Product description
HDPE pipes, Al-Wasail Company, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter : 400 mm
- Inside diameter : 375.4 mm
- Thickness : 12.3 mm
- Weight : 15.100 kg/m
- Standard dimentions ratio : SDR 33
- Pipe Series (S) : 16
- Material grade : PE 80
- Pressure : 3.2 bar
- Minimum Required Strength (MRS) : 8 MPa
- Design safety factor : C=1,6
- Design safety factor : σs = 5 MPa
- Color: Black
- Length : 12 meter from size (140 mm to 630 mm)
- Standard : DIN 8074/8075
