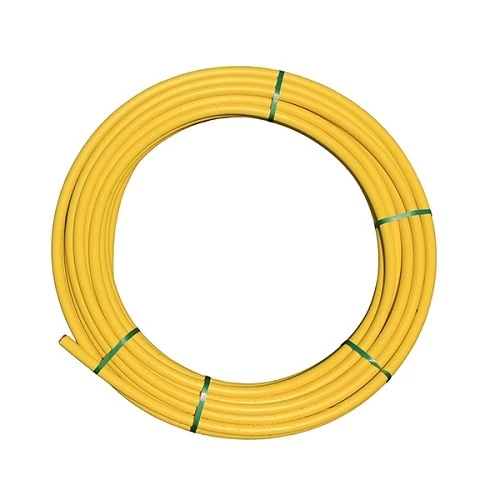

HDPE Coil Pipe PN 4.8 Bar [PE 80] Outside Diameter 75 mm Thickness 4.3 mm Color Yellow | Almona Factory
(858 Product Views)
HDPE pipe coils, Easy to maintain and install, no need to dig into the ground, made of high-density polyethylene, material grade PE80, pressure 4.8 bar (SDR 17.6), outside diameter 75 mm, produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in yellow color in a variety of sizes with highest quality and best prices.
- Outside diameter: 75 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 4.3 mm
- Material Weight : 0.98 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: yellow
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
