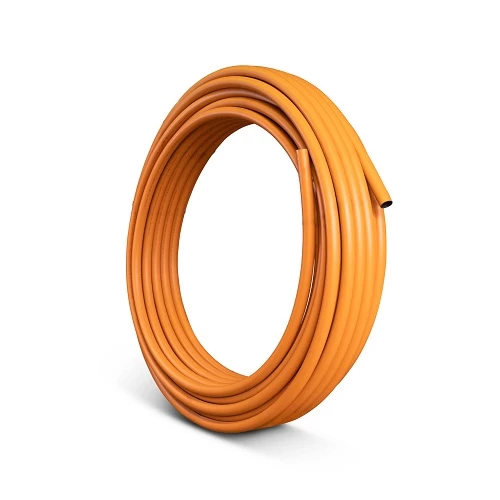

HDPE Coil Pipe Nominal Pressure 6 Bar [PE 100] Outside Diameter 50 mm Thickness 2.9 mm Color Orange | Almona Factory
(636 Product Views)
HDPE pipe coils, Resistant to harsh weather conditions, it has superior high temperature and high pressure properties, material grade PE100, pressure 6 bar (SDR 17.6), outside diameter 50 mm, produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in orange color in a variety of sizes with highest quality and best prices.
- Outside diameter: 50 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 100
- Pressure: 6 bar
- Thickness: 2.9 mm
- Material Weight: 0.46 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: orange
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
