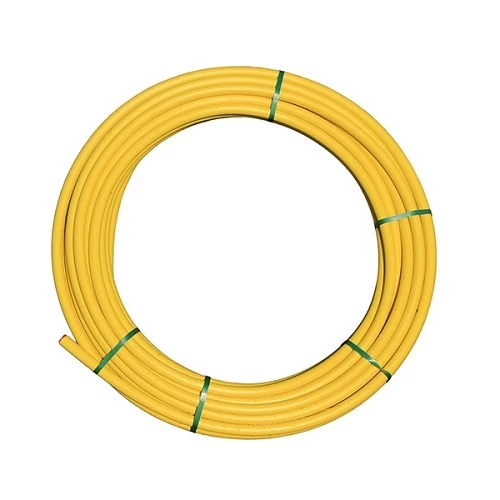

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 25 mm Thickness 2.3 mm Color Yellow | Almona Factory
(895 Product Views)
HDPE pipe coils, Available in yellow, available in a variety of sizes, with the highest quality and best prices, intended for gas supply transportation networks, material grade PE80, pressure 4.8 bar (SDR 17.6), outside diameter 25 mm, produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in yellow color in a variety of sizes with highest quality and best prices.
- Outside diameter: 25 mm
- Standard dimensions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 2.3 mm
- Material Weight : 0.17 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: yellow
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
