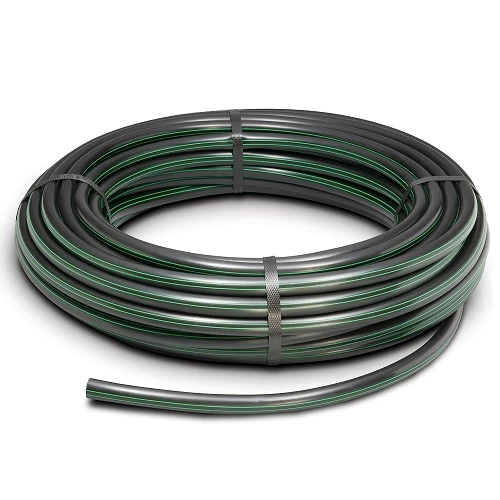

HDPE Coil Pipe Nominal Pressure 16 Bar [PE 80] OD 20 mm SDR 9 Color Black | Almona Factory
(950 Product Views)
HDPE coil pipe for irrigation systems, outside diameter 20 mm, pressure 16 bar, (SDR 9) material grade PE 80, according to DIN 8074/8075 standard, black color, produced by Al Mona factory. It has a high degree of flexibility and is therefore capable of resisting shocks, made of (high-density polyethylene).
Product description
HDPE coil pipes for irrigation systems, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 20 mm
- Thickness : 2.3 mm
- Material Weight: 0.133 kg/m
- Standard dimensional ratio : SDR 9
- Pressure : 16 bar
- Pipe Series (S) : 4
- Material grade : PE 80
- Color : Black
- Minimum Required Strength (MRS) : 8 MPa
- Design stress (σs) : 6.4 MPa
- Design safety factor : C=1.25
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : DIN 8074/8075
