![Almona HDPE Plastic Coil Pipe Nominal Pressure 8 Bar [PE 80] Outer Diameter 63 mm Thickness 5.8 mm Color Yellow](https://youmats-media.s3.me-central-1.amazonaws.com/Y6B5A3I83/conversions/HDPE-size_50_50.webp)

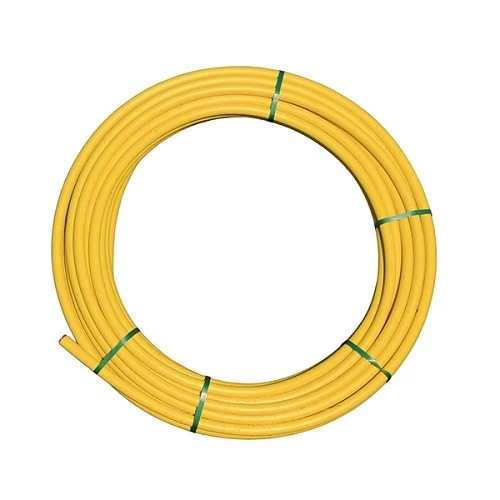

Almona HDPE Plastic Coil Pipe Nominal Pressure 8 Bar [PE 80] Outer Diameter 63 mm Thickness 5.8 mm Color Yellow
(862 Product Views)
HDPE plastic pipe coils for gas supply networks, material grade PE 80, pressure 8 bar, outside diameter 63 mm, Made of high-density polyethylene, For use in various industries and compatible with health and environmental characteristics, Yellow color produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 63 mm
- Thickness : 5.8 mm
- Material Weight: 1.06 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 8 bar
- Material grade : PE 80
- Color : Yellow
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : ISO4437
