![Almona HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 90 mm Thickness 8.2 mm Color Orange](https://youmats-media.s3.me-central-1.amazonaws.com/Y9E363I76/conversions/HDPE-size_500_500.webp "Almona HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 90 mm Thickness 8.2 mm Color Orange")

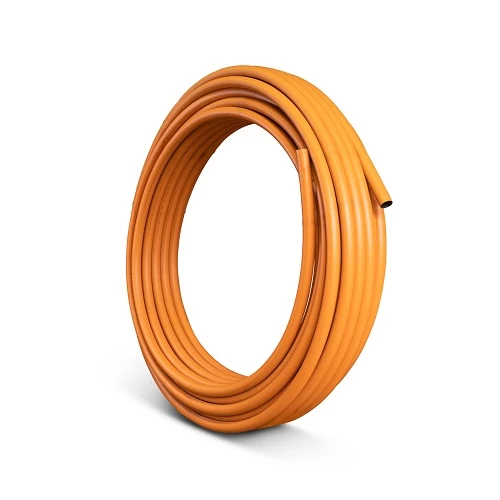

Almona HDPE Plastic Coil Pipe Nominal Pressure 10 Bar [PE 100] OD 90 mm Thickness 8.2 mm Color Orange
(742 Product Views)
HDPE pipe coils for gas supply networks, orange color produced by Al-Mona factory. It is distinguished by its high resistance to chemical corrosion and rust, making it suitable for many uses, pressure 10 bar, outside diameter 90 mm.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 90 mm
- Thickness : 8.2 mm
- Material Weight: 2.14 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 10 bar
- Material grade : PE100
- Color : Orange
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : ISO4437
