HDPE Pipes

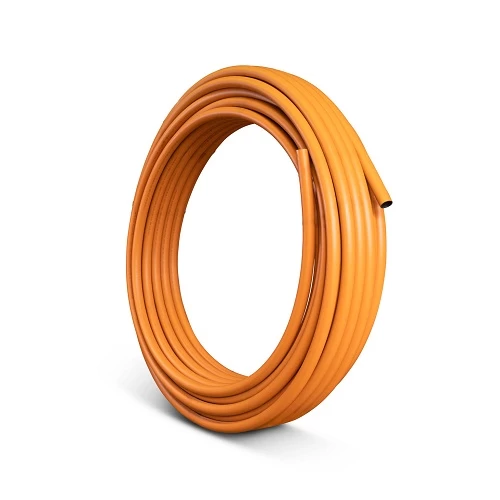

Almona HDPE Coil Pipe Pressure 10 Bar [PE 100] Outside Diameter 16 mm Thickness 3 mm Color Orange
HDPE pipe coils for gas supply networks, pressure 10 bar, outside diameter 16 mm, orange color produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona Company. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter : 16 mm
- Thickness : 3 mm
- Weight : 0.12 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 10 bar
- Material grade : PE100
- Color : Orange
- Minimum Required Strength (MRS) : 10 MPa
- Design stress (σs) : 5 MPa
- Design safety factor : C=2
- Length : Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2 : 100 meter coils from size (40 mm to 160 mm)
- Manufactured according to : ISO4437
