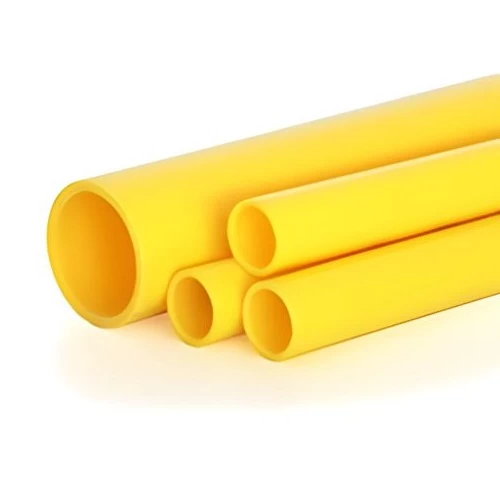

Al-Rajhi HDPE Pipes PE 100 Pressure 10 Bar Outside Diameter 225 mm Thickness 20.5 mm Color Yellow
(1236 Product Views)
HDPE Pipes, Al-Rajhi brand, PE 100, Pressure 10 Bar, Outside diameter 225 mm, Thickness 20.5 mm, Color Yellow, made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage. The pipes are also characterized by high pressure tolerance, resistance to combustion and chemical reactions, and a high degree of flexibility, which makes them not affected by soil movement and does not conduct electricity, and is characterized by its easy installation. and used in transporting gaseous fuels.
Product description
HDPE Pipes, Al-Rajhi brand, made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion and leakage due to excellent fusion welding. the pipes are also characterized by high pressure tolerance, resistance to combustion and chemical reactions, they don't conduct electricity, wwith a high degree of flexibility, which makes them not affected by soil movement, and they are easy to install and used to transport gaseous fuels.
- Outside diameter : 225 mm
- Pressure : 10 Bar
- Length : Straight 12 meters and other lengths are available under request
- Material Weight : 13.22 kg / meter
- Thickness : 20.5 mm
- Colour : Yellow
- Material : PE 100
- Standard dimentions ratio (SDR) : 11
