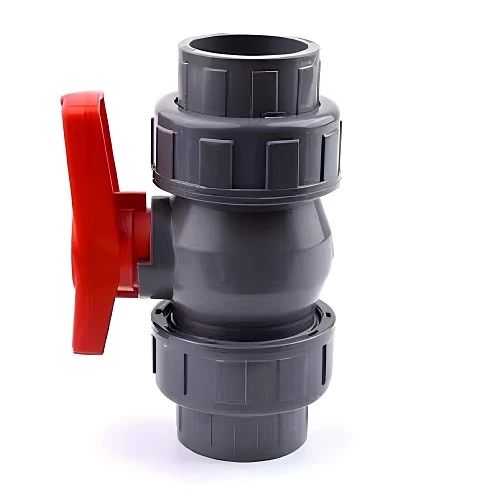

UPVC Double Union Ball Valve size 15 mm, Grey Color | Cosmoplast
(705 Product Views)
UPVC double union ball valve size 15 mm, grey color, cosmoplast factory, not affected by humidity or various environmental changes, also not susceptible to rust or corrosion.
Product description
UPVC Double Union Ball Valve produced by Cosmoplast Factory, made from unplasticized polyvinyl chloride (uPVC), characterized by their durability and resistance to UV rays, corrosion, and chemicals, it is rustproof and unaffected by humidity, making it suitable for use in humid environments or those exposed to chemicals. Lightweight and easy to install, works to control, regulate, or direct the flow within various systems such as ventilation systems, agricultural and irrigation systems. Available in a variety of sizes, with the highest quality and the best prices.
- Size: 15 mm (1/2 inch)
- First diameter (d1): 21.3 mm (according to BS standard), 20 mm (according to DIN standard)
- Second diameter (d2): 21.5 mm (according to BS standard), 20 mm (according to DIN standard)
- Internal diameter (d3): 14 mm
- Overall diameter (D): 48 mm
- Overall length (L): 112 mm
- Handle length (L1): 79 mm
- Color: Gray
- Height from the handle to the radius (H1): 48
- Total height (H2): 70
