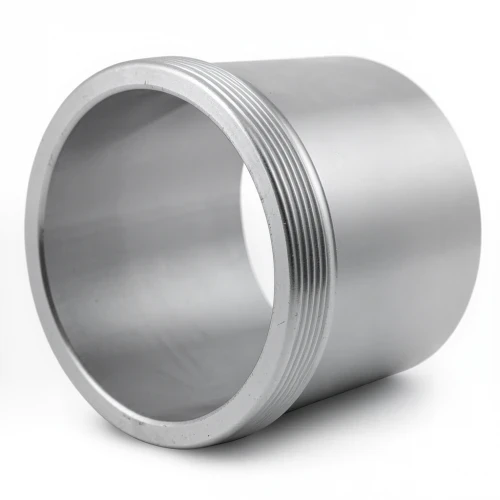

AH22 Series Withdrawal Sleeves (AH2232-AH2244)

The AH22 Series Withdrawal Sleeves are essential components for the installation and maintenance of tapered bore bearings. Designed to fit precisely inside the bearing's tapered bore, these sleeves provide a reliable interface between the bearing and the stepped shaft. This design ensures optimal load distribution during operation while facilitating the safe and efficient removal of bearings when maintenance or replacement is required.

Key Features

• Specifically designed for tapered bore bearings, including Spherical Roller Bearings.
• Enables secure mounting on stepped shafts with high dimensional accuracy.
• Facilitates easy dismounting using standard withdrawal nuts, minimizing downtime.
• Constructed from high-quality steel for durability and reliable industrial performance.
• Available in a range of sizes from AH2232 to AH2244 to suit various bearing models.

Applications

These withdrawal sleeves are widely used in heavy-duty industrial environments where bearing reliability is critical. Common applications include mining equipment, conveyor systems, industrial gearboxes, agricultural machinery, pumps, fans, and electric motors. They are an integral part of the bearing mounting system, ensuring that bearings remain fixed during high-load operations and can be quickly removed for inspection or replacement.
