HDPE Polyethylene Plastic Coil Pipe Working Pressure 15.7 Bar [PE 63] Outer Diameter 32 mm SDR 6 Color Black | Almona Company

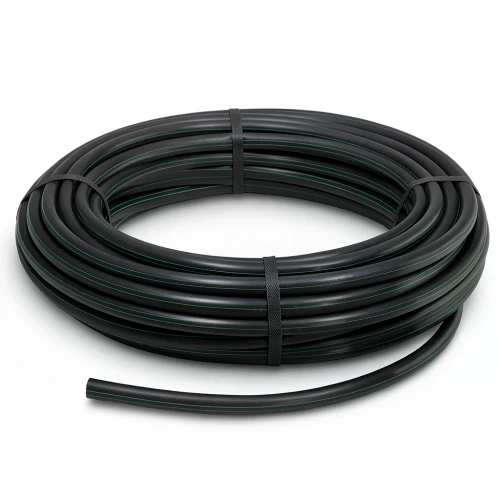

This HDPE coil pipe, manufactured by Al-Mona Company, is a reliable solution for irrigation and water distribution systems across Kuwait. Built from high-density polyethylene (PE 63), it offers exceptional durability, corrosion resistance, and the ability to withstand high temperatures and pressures—making it suitable for the demanding conditions of the region.

With a working pressure of 15.7 bar and a standard dimensional ratio (SDR 6), this pipe ensures efficient fluid transport with minimal maintenance. Its 50-year service life reduces replacement costs, while its lightweight design simplifies handling and installation, especially for large-scale projects in Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Outer diameter: 32 mm
• Wall thickness: 5.4 mm
• Weight: 0.454 kg/m
• Working pressure: 15.7 bar (SDR 6)
• Pipe series (S): 2.5
• Material grade: PE 63 (MRS 6.3 MPa)
• Design stress: 3.94 MPa with safety factor C=1.6
• Color: Black
• Available in coils: 100, 200, 300 up to 1500 meters (16-32 mm); 100-meter coils for 40-160 mm sizes
• Manufactured per DIN 8074/8075

Ideal for irrigation systems, water supply networks, and industrial applications in Kuwait, this pipe offers superior protection against external factors and ensures long-term, maintenance-free performance.
