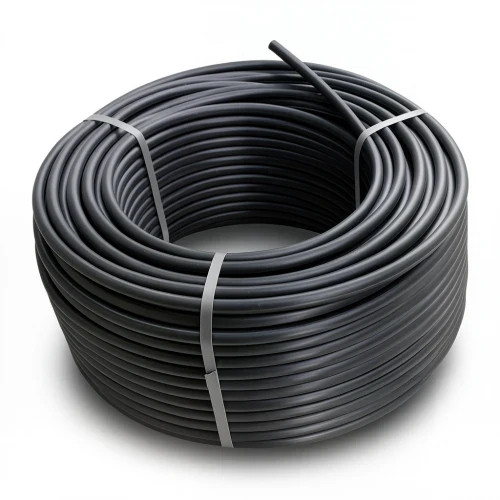

HDPE Plastic Coil Pipe Nominal Pressure 8 Bar [PE 80] OD 125 mm SDR 17 Color Black | Almona Factory
(1 Product Views)
Product description
Our HDPE coil pipes, manufactured by Al-Mona Factory, are the ideal solution for water transportation networks across Kuwait. Built to ISO 4427-2 standards, these pipes are crafted from high-density polyethylene, offering exceptional strength, durability, and resistance to high temperatures, pressure, and corrosion. Whether installed underground or exposed to harsh chemicals, they perform reliably in the demanding Kuwaiti environment.
Key Features
- Outer diameter: 125 mm
- Standard dimension ratio: SDR 17
- Material grade: PE 80
- Nominal pressure: 8 bar
- Wall thickness: 7.4 mm
- Minimum required strength (MRS): 8 MPa
- Design stress: 6.4 MPa
- Design safety factor: C = 1.25
- Color: black
- Available in coils of 100 m, 200 m, 300 m, up to 1500 m for sizes 16 mm to 32 mm; 100 m coils for sizes 40 mm to 160 mm
Applications in Kuwait
These pipes are perfect for potable water supply, irrigation systems, and industrial fluid transport in both urban and rural areas like Kuwait City, Hawalli, and Al Ahmadi. Their flexibility and lightweight nature simplify logistics and installation, reducing project timelines and labor costs. Choose Al-Mona HDPE coils for a long-lasting, low-maintenance piping solution.
