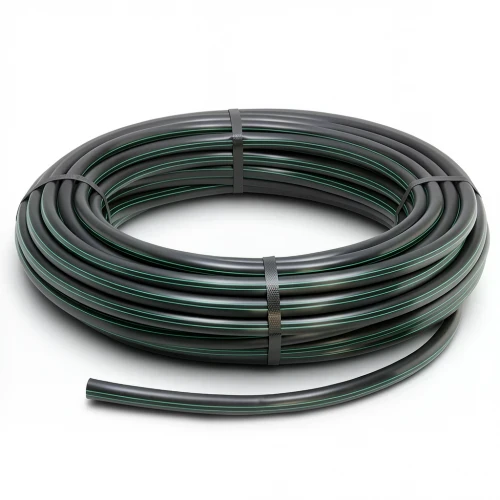

HDPE Polyethylene Coil Pipe Nominal Pressure 6.2 Bar [PE 63] OD 90 mm SDR 13.6 Color Black | Almona Company

This HDPE coil pipe from Almona Company is engineered for reliable liquid transport in demanding environments. Manufactured from high-density polyethylene (PE 63), it offers exceptional durability, flexibility, and resistance to breakage, making it a top choice for irrigation systems and water distribution networks across Kuwait.

With a nominal pressure of 6.2 bar and an outside diameter of 90 mm, this pipe is designed to handle high water pressures commonly found in municipal and agricultural applications. Its SDR 13.6 rating ensures consistent wall thickness, while the black color provides UV resistance, crucial for the intense Kuwaiti sun.

Key features include:

• Nominal pressure: 6.2 bar
• Outside diameter: 90 mm
• Wall thickness: 6.7 mm
• Material weight: 1.77 kg/m
• Standard dimensional ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 63
• Minimum required strength (MRS): 6.3 MPa
• Design stress: 3.94 MPa
• Design safety factor: C=1.6
• Manufactured according to DIN 8074/8075
• Available in coils of 100 meters (for sizes 40 mm to 160 mm)

These pipes are ideal for irrigation projects in Kuwait's agricultural regions, as well as for water supply lines in residential and commercial developments in Kuwait City, Hawalli, and Al Ahmadi. Their flexibility simplifies installation, reducing the need for fittings and joints, and their 50-year maintenance-free lifespan ensures long-term cost efficiency.
