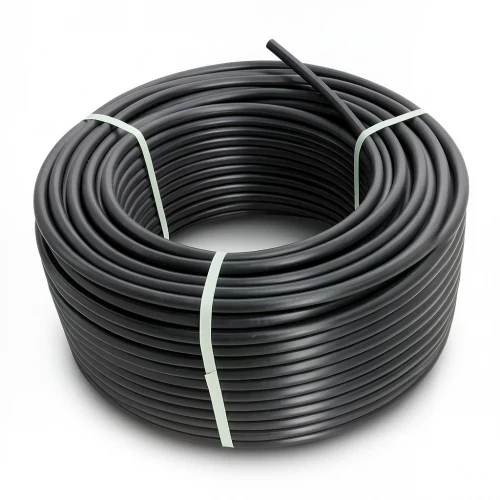

HDPE Coil Pipe PN 16 Bar [PE 80] OD 40 mm SDR 9 Color Black | Almona Factory

These HDPE coil pipes, manufactured by Al-Mona Factory in accordance with ISO 4427-2, offer a robust solution for water transportation networks across Kuwait. The high-density polyethylene construction delivers exceptional strength, durability, and resistance to corrosion, ensuring long-lasting performance even in demanding conditions.

With a pressure rating of 16 bar and an outer diameter of 40 mm, these pipes are suitable for a wide range of applications, from municipal water supply to agricultural irrigation systems. The black color provides UV resistance, making them ideal for outdoor installations under the intense Kuwaiti sun.

Key Features

• Material grade: PE 80
• Standard dimension ratio: SDR 9
• Pressure rating: 16 bar
• Wall thickness: 4.5 mm
• Minimum required strength (MRS): 8 MPa
• Design stress: 6.4 MPa
• Design safety factor: C=1.25
• Available in coils of 100 meters (sizes 40 mm to 160 mm)

Ideal for projects in Kuwait City, Hawalli, and Al Ahmadi, these pipes meet the rigorous standards required for modern infrastructure and agricultural development.
