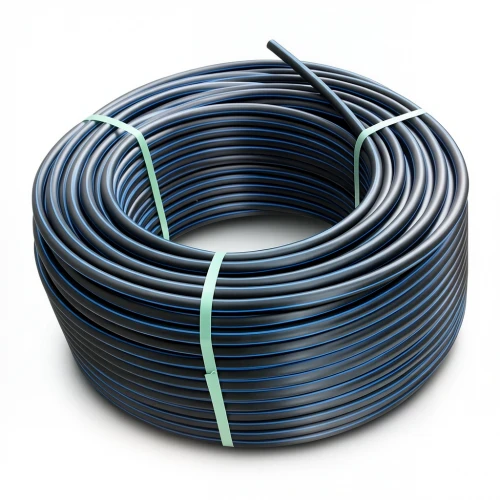

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] OD 32 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Our HDPE plastic coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, are engineered for reliable and efficient water transportation. Made from high-density polyethylene (PE100), these pipes offer exceptional strength, durability, and long-term performance, making them a trusted choice for water networks across Kuwait.

Key Features

• Pressure rating: 20 bar (PN20)
• Outside diameter: 32 mm
• Standard dimension ratio: SDR 9
• Pipe series (S): 4
• Wall thickness: 3.6 mm
• Material grade: PE 100 (MRS 8 MPa)
• Design safety factor: C=1.25
• Weight: 0.331 kg/m
• Color: Black with blue stripes
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm
• Complies with DIN 8074/8075

Applications in Kuwait

These pipes are ideal for potable water supply lines, irrigation systems, and industrial water transport. Their high pressure resistance and durability make them suitable for Kuwait's demanding climate and infrastructure projects, from residential developments in Hawalli to large-scale utilities in Al Ahmadi and Kuwait City.

Advantages

• Long service life: over 50 years with minimal maintenance
• Excellent resistance to UV radiation and weather conditions
• High flexibility, reducing the risk of damage from ground movement or seismic activity
• Resistant to chemical corrosion, withstanding pH levels from 2 to 12
• Lightweight and easy to install, reducing labor and transportation costs

Choose Almona Factory HDPE pipes for a reliable, cost-effective solution that meets the highest standards of quality and performance.
