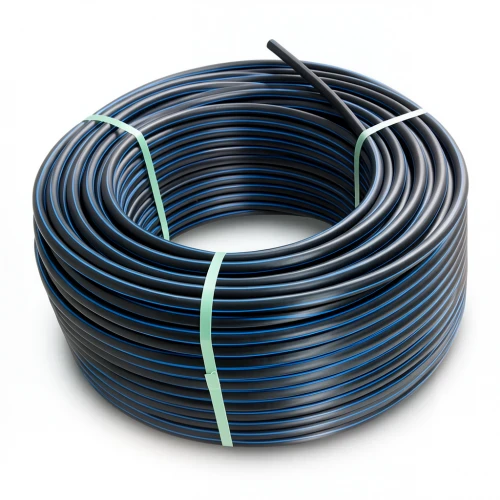

HDPE Plastic Coil Pipe PN 19.2 Bar [PE 100] Outside Diameter 40 mm SDR 7.4 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes from Almona Factory are engineered for demanding water transportation networks, delivering robust performance in Kuwait's challenging environment. Manufactured to DIN 8074/8075 standards, they combine high-pressure resistance with exceptional durability, making them a reliable choice for municipal and industrial projects across Kuwait City, Hawalli, and Al Ahmadi.

Thanks to their high-density polyethylene construction, these pipes offer a maintenance-free service life of 50 years, superior UV resistance, and flexibility that withstands ground movement and seismic activity. Their chemical resistance covers a pH range of 2 to 12, ensuring safe conveyance of various fluids.

Key Features

• Outside diameter: 40 mm
• Standard dimension ratio: SDR 7.4
• Pipe series (S): 3.2
• Material grade: PE 100
• Pressure rating: 19.2 bar
• Wall thickness: 5.5 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.607 kg/m
• Design safety factor: C=1.6, σs = 6.25 MPa
• Color: Black with blue stripes
• Length: Coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Ideal for potable water supply, irrigation systems, and industrial fluid transport, these pipes are a cost-effective solution for Kuwait's infrastructure needs.
