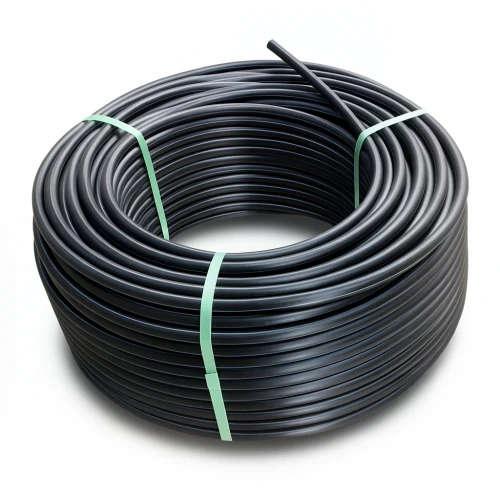

HDPE Plastic Coil Pipe PN 16 Bar [PE 80] OD 140 mm SDR 9 Color Black | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory, is a reliable solution for water transportation networks across Kuwait. Made from high-density polyethylene (PE80), it offers exceptional strength, durability, and resistance to pressure, chemicals, and corrosion. Its ability to withstand high temperatures makes it suitable for Kuwait's hot climate and demanding industrial applications.

Key Features

• Outside diameter: 140 mm
• Standard Dimension Ratio: SDR 9
• Material grade: PE 80
• Pressure rating: 16 bar
• Wall thickness: 15.7 mm
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C = 1.25
• Color: black
• Length: Available in coils of 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured in accordance with ISO 4427-2

Applications in Kuwait

Ideal for potable water supply, irrigation systems, and industrial fluid transfer in Kuwait City, Hawalli, and Al Ahmadi. The lightweight nature of the pipe simplifies handling and installation, reducing labor costs and time on site. Its corrosion resistance ensures long service life even in Kuwait's saline soil and harsh environmental conditions.
