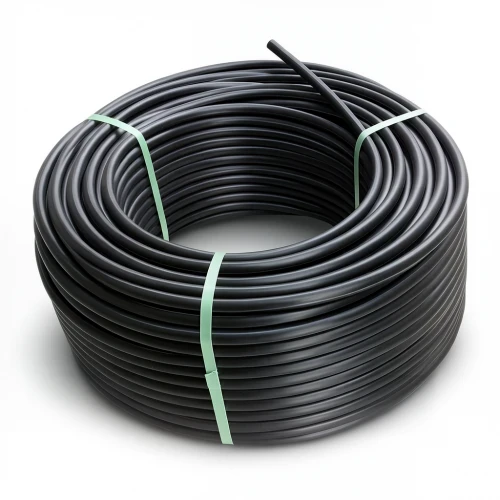

HDPE Polyethylene Coil Pipe Nominal Pressure 20 Bar [PE 100] OD 20 mm SDR 9 Color Black | Almona Factory

This HDPE coil pipe from Al-Mona Factory is engineered for reliable water transportation in Kuwait's demanding environment. Made from PE100 grade high-density polyethylene, it offers exceptional strength, durability, and resistance to high temperatures, moisture, and chemicals – ensuring long-lasting performance in both underground and above-ground installations.

With a nominal pressure of 20 bar (SDR 9) and an outside diameter of 20 mm, this pipe is suitable for a wide range of applications, including potable water supply, irrigation systems, and industrial fluid transfer. Its flexibility allows for easy handling and installation, especially in tight spaces or long runs.

Key Features

• PE100 material grade for high strength and durability
• Nominal pressure: 20 bar (PN20)
• Standard dimensional ratio: SDR 9
• Outside diameter: 20 mm, wall thickness: 2.3 mm
• Black color for UV resistance (when exposed)
• Manufactured according to ISO 4427-2
• Available in coil lengths from 100 to 1500 meters (for sizes 16–32 mm)
• Minimum Required Strength (MRS): 10 MPa
• Design stress: 8 MPa, safety factor: C=1.25

Ideal for construction and infrastructure projects across Kuwait City, Hawalli, and Al Ahmadi, this HDPE pipe meets the highest quality standards, ensuring a reliable water supply for residential, commercial, and agricultural use.
