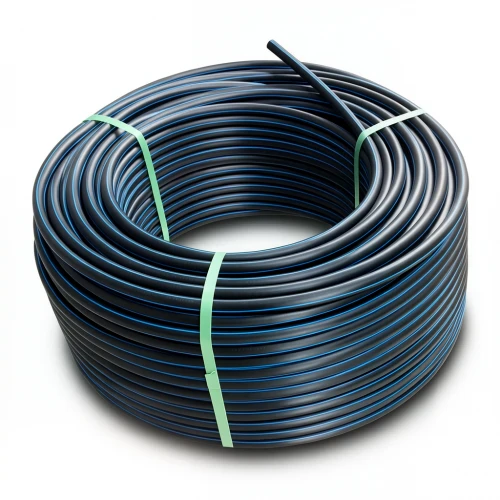

HDPE Plastic Coil Pipe Nominal Pressure 9.9 Bar [PE 100] OD 160 mm SDR 13.6 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for reliable water transmission networks across Kuwait. These pipes, manufactured to DIN 8074/8075, combine high strength with exceptional flexibility, making them a preferred choice for infrastructure projects in Kuwait City, Hawalli, and Al Ahmadi.

Made from high-density polyethylene (PE 100), these pipes withstand high operating pressures, ensuring consistent performance even in demanding conditions. Their design offers a maintenance-free service life of up to 50 years, reducing long-term operational costs. The material resists UV exposure, chemical corrosion (pH 2–12), and seismic activity thanks to the flexibility of both the pipe and its welded joints.

Key Features

• Outside diameter: 160 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Material grade: PE 100
• Nominal pressure: 9.9 bar
• Wall thickness: 11.8 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 5.56 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: black with blue stripes
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

These pipes are suitable for potable water supply, irrigation, and industrial applications, offering a robust solution that meets the rigorous demands of Kuwait's climate and construction standards.
