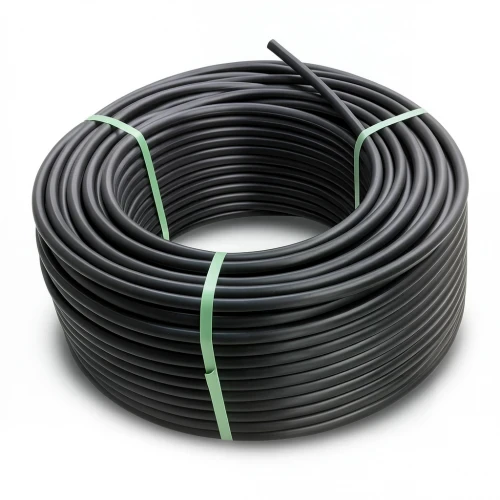

HDPE Plastic Coil Pipe Nominal Pressure 12.5 Bar [PE 100] OD 32 mm SDR 13.6 Color Black | Almona Factory

This HDPE coil pipe from Al-Mona Factory is engineered for reliable water transportation in Kuwait's demanding environment. Made from high-density polyethylene (PE 100), it offers exceptional strength, durability, and resistance to corrosion and rust, ensuring a long service life even in harsh conditions.

With a nominal pressure of 12.5 bar and SDR 13.6, this pipe is suitable for a wide range of water supply applications, including potable water lines, irrigation systems, and industrial networks. Its flexibility allows for easy installation, especially in trenchless applications, reducing labor and time on site.

Key Features

• Outside diameter: 32 mm
• Wall thickness: 2.4 mm
• Standard dimensional ratio (SDR): 13.6
• Nominal pressure: 12.5 bar
• Pipe series (S): 6.3
• Material grade: PE 100
• Color: Black
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Manufactured according to ISO 4427-2

Available in coil lengths of 100, 200, 300, up to 1500 meters for sizes 16 mm to 32 mm, and 100-meter coils for sizes 40 mm to 160 mm. Ideal for projects across Kuwait, from Kuwait City to Al Ahmadi, this pipe meets the highest quality standards for modern infrastructure.
