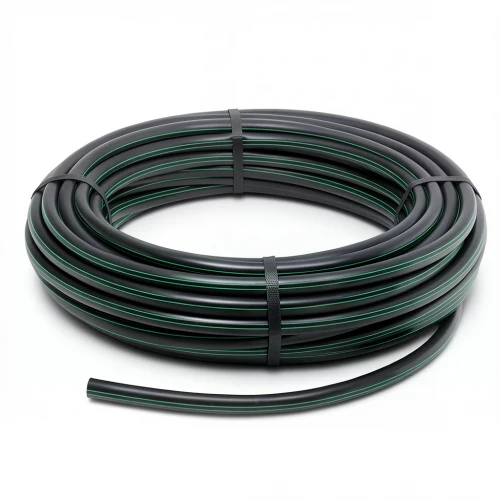

HDPE Plastic Coil Pipe Nominal Pressure 6.2 Bar [PE 63] Outside Diameter 160 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

Introducing the HDPE Plastic Coil Pipe from Al-Mona Factory, engineered to meet the rigorous demands of water transportation networks in Kuwait. Crafted from high-density polyethylene (PE 63) and manufactured in accordance with DIN 8074/8075, this pipe delivers exceptional durability and performance, ensuring reliable service in the harsh desert climate.

With an outside diameter of 160 mm and a nominal pressure of 6.2 bar, this pipe is designed to withstand high water pressures, making it a preferred choice for municipal and industrial water supply systems across Kuwait City, Hawalli, and Al Ahmadi. Its SDR 13.6 rating and 11.8 mm wall thickness provide robust structural integrity, while the 50-year maintenance-free lifespan reduces long-term operational costs.

Key advantages include superior resistance to UV radiation, chemical corrosion (pH 2–12), and seismic activity—critical for Kuwait’s conditions. The pipe’s flexibility and strong welded joints ensure leak-proof connections, and its lightweight nature simplifies handling and installation.

Key Features

• Outside diameter: 160 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Material grade: PE 63
• Nominal pressure: 6.2 bar
• Wall thickness: 11.8 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 5.50 kg/m
• Design safety factor: C=1.6 (σs = 3.94 MPa)
• Color: Black with green stripes
• Available in coils of 100 meters (sizes 40 mm to 160 mm)

Ideal for potable water distribution, irrigation systems, and industrial applications, this HDPE pipe delivers unmatched performance and longevity, making it a smart investment for Kuwait’s infrastructure projects.
